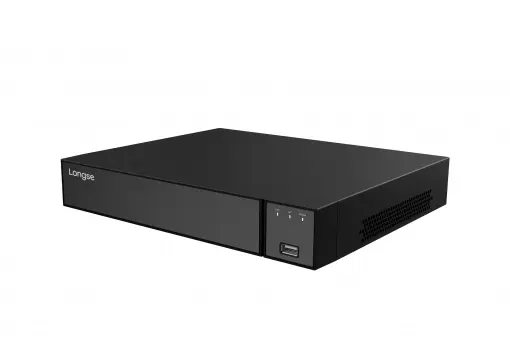

Longse snimač XVRDA7016HCB Hybrid,H264+/265+, 8M-N 16ch
Prodavač:Podgor
412,00EUR
Ključne karakteristike
Hibridna podrška: Analog / AHD / CVI / TVI 2.0 / TVI 3.0 / IP (Network)
16× BNC ulaza
Human Detection (analitika)
Video kompresija: H.265 / H.265+ / H.264 / H.264+
2× SATA (2.5"/3.5", do 16TB ukupno)
Višejezični interfejs
Sistem
Glavni procesor: MC6680
OS: Embedded Linux
Video ulazi / režimi
Normal Mode (default):
16× (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; 1080P/720P; Analog: 960H) + 8× IP (do 8MP)
Analog + Network (primjeri):
2× Analog (8MP) + 22× IP … do 16× Analog (8MP) + 8× IP (sve do max 8MP po IP kanalu)
Pure Network: do 32× (8MP/5MP/4MP/3MP/1080P/960P/720P), ulazna propusnost ≤ 160 Mb/s
Izlazi videa: 1× HDMI, 1× VGA, 1× CVBS
Tip signala: Analog/AHD/CVI/TVI 2.0/3.0/IP
Audio
Ulaz: 6× RCA (AOC podržan)
Izlaz: 1× RCA
Dvosmerni audio: Ne
Kompresija: G.711u / G.711a
Alarm / Analitika
Alarm ulazi/izlazi: 4 In / 1 Out
Detekcija pokreta: 16 kanala
Okidači: Snimanje, e-mail, ekran poruke, zujalica, push notifikacije (pokret)
E-mail alarm: slanje slike na definisanu adresu
AI funkcija: Human Detection – DA
PTZ
Interfejs: RS-485
Protokoli: Pelco-D, Pelco-P
Brzina (baud): 110–921600
Adresa: 0–255
Prikaz
VGA: 1920×1080, 1280×1024, 1280×720, 1024×768
HDMI: 4K, 1920×1080, 1280×1024, 1280×720, 1024×768
Raspored ekrana: 1 / 4 / 6 / 9 / 16 / 25 / 36
Privatne zone: 3 pravougaone zone po kameri
OSD: naziv kamere, vreme, gubitak videa, alarm, pokret, snimanje
Snimanje
Video kompresija: H.265 / H.265+ / H.264 / H.264+
Audio kompresija: G.711u / G.711a
Rezolucije (primjeri): 5MP (2560×1952), 8MP_Lite (1920×2160), 5MP_Lite (1280×1952), 1080P, 720P, 960H
Kvalitet videa: Lowest / Low / Ordinary / Good / Better / Best
Brzine snimanja — Analog (PAL/NTSC):
8MP_Lite: 16×8fps
5MP: 16×6fps
5MP_Lite: 16×10fps
1080P: 16×15fps
Brzine snimanja — Pure IP (H.265):
PAL: 8MP 20×25fps, 5MP/4MP/3MP/1080P/960P/720P 32×25fps
NTSC: 8MP 20×30fps, 5MP/4MP/3MP/1080P/960P/720P/D1 32×30fps
Režimi snimanja: Manual / Timer / Motion / Alarm
Reprodukcija i bekap
Dekodirajući kapacitet: 8×1080P@30fps
Sync playback:
Pure Analog: 16CH 8MP_Lite@8fps, 16CH 5MP@6fps, 16CH 5MP_Lite@10fps, 16CH 1080P@15fps, 16CH 720P@15fps, 16CH 960H@30fps
Mix Mode: do 2CH 4K@30, 3CH 5M@30, 4CH 4M@30, 5CH 3M@30, 8CH 1080P@30, 16CH 5M@6, 15CH 8M_Lite@8, 16CH 1080P@15
Pure IPC: 2CH 4K@30, 3CH 5M@30, 4CH 4M@30, 5CH 3M@30, 8CH 1080P@30
Daljinska reprodukcija: 4CH / 1CH
Pretraga: All, Channel, Manual, Time/Date, Motion, Alarm, Tag
Funkcije: Play/Pause/Stop, Fast/Slow, Rewind, Single-frame ±, Digital Zoom, Full Screen
Smartphone playback: 4CH
Bekap: USB (FAT32) / Mreža / FTP
Mreža
Interfejs: 1× RJ-45 10/100M (adaptive)
Mrežne funkcije: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP/RTSP/RTCP
DDNS servisi: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
Pregledači: Edge, IE8-11, Chrome, Firefox, Safari
CMS softver: Windows 7/8/10/11, macOS
Extra stream: CIF/D1 (1–30fps)
Mobilne aplikacije: iPhone, iPad, Android, Android tablet
Skladištenje
Interfejs: 2× SATA
Kapacitet: 2× HDD (2.5"/3.5", do 16TB ukupno)
Opšte
Jezici UI: CN (simp./trad.), EN, PL, CS, RU, TH, HE, AR, BG, JA, DE, FR, PT, TR, ES, IT, HU, RO, KO, NL, EL, VI, …
UTC (koaksijalna) kontrola: DA
USB: 2× USB 2.0
Napajanje / potrošnja: DC 12V/4A, ≤ 15W (bez HDD-a)
Radno okruženje: −10 ~ 50 °C / 10–90% RH
Dimenzije (Š×D×V): 310 × 295 × 46 mm
Masa: 3.5 kg (bez HDD-a)
