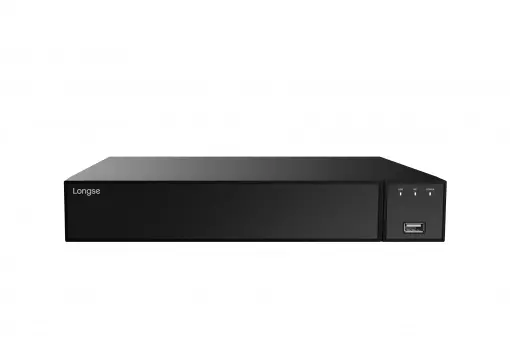

Longse snimač XVR5008C1P H265/H264 8MP-N 8ch
Prodavač:Podgor
203,80EUR
Ključne karakteristike
Hibridna podrška: Analog / AHD / CVI / TVI 2.0 / TVI 3.0 / IP (Network)
8× BNC ulaza
Human Detection (analitika)
Video kompresija: H.265 / H.265+ / H.264 / H.264+
1× SATA (2.5"/3.5", do 8TB)
Višejezični interfejs
Sistem
Glavni procesor: MC6650
OS: Embedded Linux
Video ulazi / režimi
Normal Mode (podrazumevano):
8× (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) + 4× IP (do 8MP)
Analog + Network: 6× Analog (8MP) + 8× IP (do 8MP) / 4× Analog (8MP) + 10× IP / 2× Analog (8MP) + 12× IP
LITE Mode:
8× (TVI/AHD: 5MP@12fps; AHD/TVI/CVI: 4MP@15fps; 1080P/720P; 960H) + 4× IP (do 8MP)
Analog + Network: 6× Analog (5MP@12fps) + 8× IP / 4× Analog (5MP@12fps) + 10× IP / 2× Analog (5MP@12fps) + 12× IP
Pure Network: do 16× (8MP/5MP/4MP/3MP/1080P/960P/720P), ulazna propusnost ≤ 80 Mb/s
Izlazi videa: 1× HDMI, 1× VGA
Tip signala: Analog/AHD/CVI/TVI 2.0/3.0/IP
Audio
Ulaz: 1× RCA (AOC podržan)
Izlaz: 1× RCA
Dvosmerni audio: Ne
Kompresija: G.711U / G.711A
Alarm / Analitika
Alarm ulazi/izlazi: 4 In / 1 Out
Detekcija pokreta: 12 kanala (do 16 u Pure Network modu)
Okidači: Snimanje, e-mail, ekran poruke, zujalica, push (na pokret)
E-mail alarm: slanje slike na definisanu adresu
AI funkcija: Human Detection – DA
PTZ
Interfejs: RS-485
Protokoli: Pelco-D, Pelco-P
Brzina (baud): 110–921600
Adresa: 0–255
Prikaz
VGA izlaz: 1920×1080, 1280×1024, 1280×720, 1024×768
HDMI izlaz: 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Raspored ekrana: 1 / 4 / 8 / 9 / 16
Privatne zone: 3 pravougaone zone po kameri
OSD: naziv kamere, vreme, gubitak videa, alarm, pokret, snimanje
Snimanje
Video kompresija: H.265 / H.265+ / H.264 / H.264+
Audio kompresija: G.711U / G.711A
Podržane rezolucije: 8MP_Lite, 5MP, 5MP_Lite, 4MP, 4MP_Lite, 3MP, 3MP_Lite, 1080P, 720P, 960H
Kvalitet videa: Lowest / Low / Ordinary / Good / Better / Best
Brzine snimanja — Normal Mode (Analog):
PAL/NTSC: 8MP_Lite 8×8fps, 5MP 8×6fps, 5MP_Lite 8×10fps, 4MP 8×8fps, 4MP_Lite 8×15fps, 3MP 8×9fps, 3MP_Lite 8×18fps, 1080P 8×15fps, 720P 8×25/30fps, 960H 8×25/30fps
Brzine snimanja — LITE Mode (Analog):
PAL: 5MP_Lite 8×10fps, 4MP_Lite 8×15fps, 3MP_Lite 8×18fps, 1080N/720P/960H 8×25fps
NTSC: 5MP_Lite 8×10fps, 4MP_Lite 8×15fps, 3MP_Lite 8×18fps, 1080N/720P 8×25fps, 960H 8×30fps
Brzine snimanja — Pure IP (H.265):
PAL: 8MP 9×25fps, 5MP 12×25fps, 4MP 16×25fps, 3MP 16×25fps, 1080P/960P/720P/D1 16×25fps
NTSC: 8MP 9×30fps, 5MP 12×30fps, 4MP 16×30fps, 3MP 16×30fps, 1080P/960P/720P/D1 16×30fps
Režimi snimanja: Normal / Motion / Alarm / Intelligent
Reprodukcija i bekap
Dekodirajući kapacitet: 4×1080P@30fps
Sync playback:
Normal Mode – Pure Analog: 8CH 5M@6fps; 7CH 8M_Lite@8fps; 8CH 4M@8fps; 8CH 3M@9fps; 8CH 1080P@15fps
Normal Mode – Mix: 4CH 5M@6fps; 4CH 4M@8fps; 4CH 3M@9fps; 4CH 1080P@15fps; 1CH 8MP@30fps; 2CH 5MP@30fps; 2CH 4MP@30fps; 2CH 3MP@30fps
Pure IPC: 1CH 4K@30; 2CH 5MP@30; 3CH 4MP@30; 4CH 3MP@30; 4CH 1080P/960P/720P@30
LITE Mode – Pure Analog: 8CH 5M_Lite; 8CH 1080N/720P/960H @25fps
LITE Mode – Mix/Pure IPC: kao gore (do 4K@30/5MP@30/4MP@30/3MP@30/1080P@30)
Daljinska reprodukcija: 4CH / 1CH
Pretraga: All, Channel, Manual, Time/Date, Motion, Alarm, Tag
Funkcije: Play/Pause/Stop, Fast/Slow, Rewind, Single-frame ±, Digital Zoom, Full Screen
Smartphone playback: 4CH
Bekap: USB (FAT32) / Mreža / FTP
Mreža
Interfejs: 1× RJ-45 10/100M (adaptive)
Mrežne funkcije: TCP/IP, IPv4/IPv6, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP
DDNS servisi: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
Pregledači: Edge, Chrome, Firefox, Safari
CMS softver: Windows 10/11, macOS
Extra stream: CIF (1–30fps) / D1 (1–15fps)
Mobilne aplikacije: iPhone, Android
Skladištenje
Interfejs: 1× SATA
Kapacitet: 1× HDD (2.5"/3.5", do 8TB)
Opšte
Jezici UI: CN (simp./trad.), EN, PL, CS, TH, HE, AR, BG, JA, DE, FR, PT, TR, ES, IT, HU, RO, KO, NL, EL, VI, UK
UTC (koaksijalna) kontrola: DA
USB: 2× USB 2.0
Potrošnja: DC 12V/2A, ≤ 7W (bez HDD-a)
Radno okruženje: −10 ~ 55 °C / 10–90% RH
Dimenzije (Š×D×V): 260 × 230 × 43 mm
Masa: 1.2 kg (bez HDD-a)
